Mining Specialty Products

MINING SPECIALTY PRODUCTS AND SERVICES

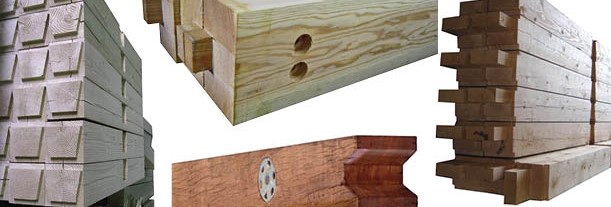

Shaft Guides
  • Douglas Fir, Karri, PSL, Laminated
  • Typical guides sizes always Free of Heart Centers (FOHC)
  • 5m to 12m (16 ft to 36 ft)
  • 6’’x8’’ / 4’’x6’’ / 5’’x7’’ / 6’’x10’’
  • D4S (S4S) 1/2’’ off or 1/4’’ off, and all other sizes
  • Grade NLGA Para. 189 a) Clear or b) Select / WCLIB
  • SYP and fir Glu-Lam guides to any size
Timber
  • Douglas Fir – 6’’ x 6’’ to 18’’ x 18’’ to 60’
  • Milling to meet your manufacturing needs
  • Pole line crossarms – Transmission arms
  • All types of pickets and stakes
  • Oak and Birch hardwood timber for heavy-duty applications
  • Design and fabrication of custom Glulam structures
Custom Framing and Shaft Sets
  • Framing shaft sets of 8 x 8” and 10 x 10”
  • Grade #1 structural Douglas Fir or Spruce
  • Typical type shaft
    • Wallplates: 22’ – 3 comp / 28’ – 4 comp
    • Endplates: 8’
    • Dividers: 7’
    • Posts: 7’
  • Rough Blocking 1’ and 2’, and multiples
  • Dressing is standard 1/2” or 1/4” off
  • Precision, end-trimmed lining in Douglas Fir or Spruce
  • Wedges 2” x 4” x 12”
Services
  • In-house engineering consultants
  • Export preparation and packaging for worldwide distribution
  • On-site heat treating (HT)
  • In-house classification inspectors



  For specific architectural information, please email us at spec@goodfellowinc.com.
